Introduction
A pre-engineered building must withstand wind pressure and other lateral forces without compromising its structural stability. Rod bracing in pre-engineered buildings helps achieve this by providing a designed load path through which horizontal forces can be transferred safely towards the foundations.
Rod bracing consists of steel rods installed diagonally between selected structural members. These rods form part of the building's stability system and help control lateral movement under the loads considered during structural design. For factories, warehouses, and industrial sheds in Noida, selecting an appropriate bracing arrangement is important for reliable building performance.
At Sumiraj, rod bracing is considered part of the overall Pre-Engineered Building (PEB) structural system. Its effectiveness depends on the building layout, member capacity, connection details, and coordination with the primary frame, secondary members, and foundations.
What Is Rod Bracing in a PEB Structure?
Rod bracing is a structural arrangement that uses slender steel rods to resist lateral forces in designated parts of a building. The rods are typically installed diagonally between columns, roof framing members, or other engineered connection points.
In PEB construction, rod bracing may be arranged in an X-pattern or another configuration suitable for the structural design. Depending on the application, the system may incorporate threaded ends, clevises, turnbuckles, gusset plates, and bolted connections.
Rod bracing is generally designed primarily to resist tension. In an X-bracing arrangement, one diagonal may become active in tension when the force direction changes, while the other may contribute less unless it is specifically designed to resist compression as well.
The arrangement must therefore be selected through engineering calculations rather than relying on the appearance of the bracing alone.
How Does Rod Bracing Work in Pre-Engineered Buildings?
1. Resisting Lateral Forces
Wind acting on a building's walls and roof can create horizontal forces that affect the structural frame. Rod bracing helps transfer these forces through designated braced bays towards the supporting structural system.
The exact load path depends on the building's geometry and structural design. Roof bracing, wall bracing, columns, rafters, connections, and foundations must work together to transfer the specified forces.
2. Controlling Structural Movement
Lateral forces can cause a building to sway. Excessive movement may affect cladding, doors, roof components, and connections.
A properly designed bracing system helps resist deformation in the braced direction and supports the intended alignment of the structural frame. The degree of restraint depends on the overall structural arrangement and the stiffness of the connected components.
3. Supporting Stability During Erection
During construction, structural frames may be unstable until all required permanent members and connections are installed.
Temporary erection bracing may be necessary to maintain stability during lifting and assembly. This temporary system serves a different purpose from permanent rod bracing and must follow the approved erection plan.

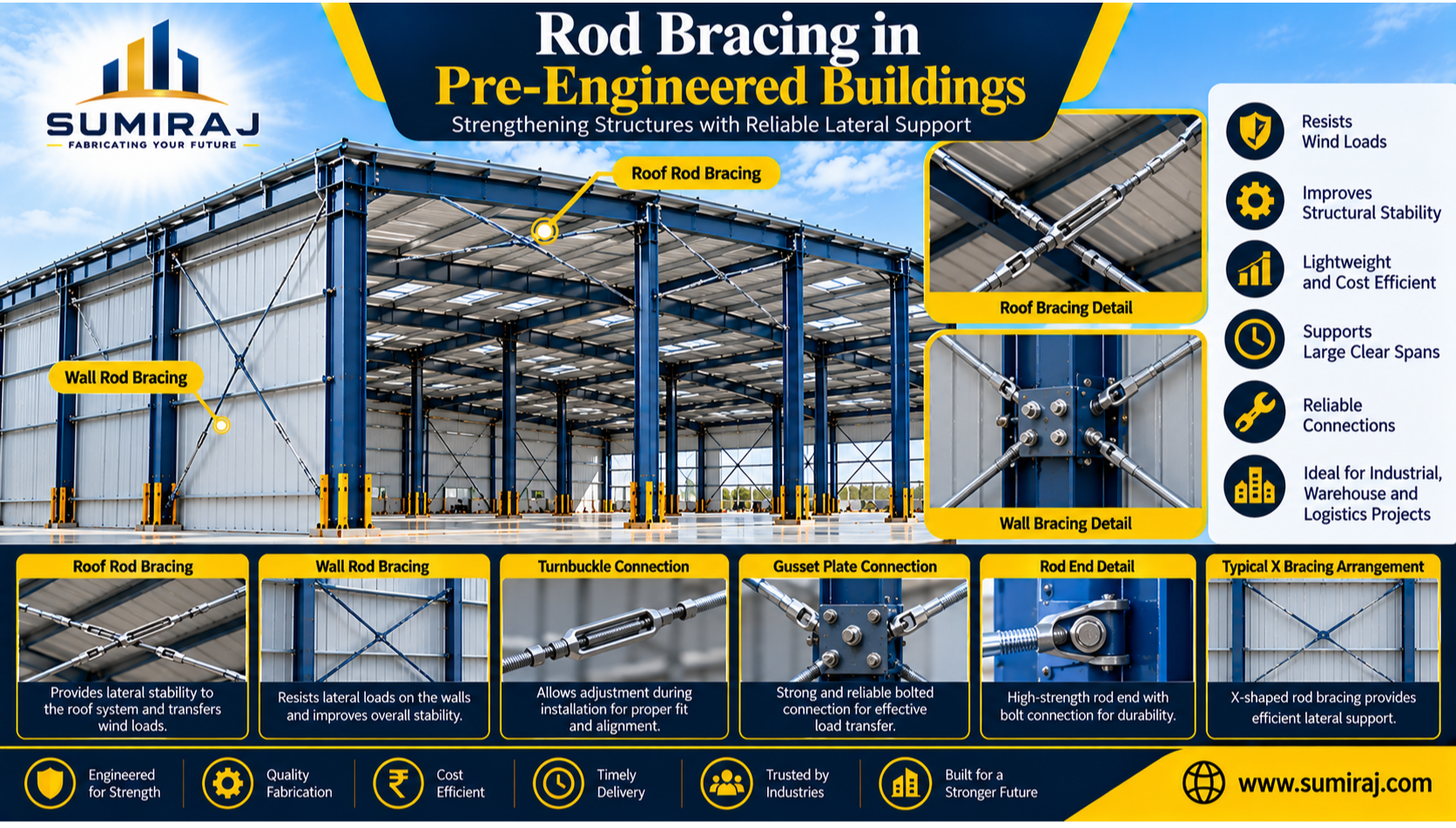

Types of Rod Bracing Used in PEB Buildings
1. Roof Rod Bracing
Roof rod bracing is installed diagonally within selected roof bays. It helps stabilise the roof-plane system and transfer longitudinal forces towards the designated vertical resisting system.
Its location must be coordinated with purlins, roof sheeting, skylights, ventilation equipment, and other openings. Any interruption to the planned arrangement requires engineering review.
2. Wall Rod Bracing
Wall rod bracing is installed in selected vertical bays between columns or other designated structural points. It contributes to longitudinal stability and helps transfer lateral forces through the building's structural system.
In warehouses, wall bracing must be coordinated with loading doors, shutters, and access routes. If a bracing bay conflicts with an operational requirement, the engineer must evaluate an alternative solution that maintains the required stability.
3. X Rod Bracing
X rod bracing consists of two diagonal rods crossing within a structural bay. This arrangement can provide an efficient tension-bracing system when designed for the expected force directions.
The rods, gusset plates, fasteners, and supporting members must all be checked for their assigned forces. The design should also account for the behaviour of the rods and connections under relevant load combinations.
4. Rod Bracing with Turnbuckles
Turnbuckles may be included in rod bracing systems where adjustment is needed during installation. They allow the effective rod length to be adjusted to achieve the specified fit and alignment.
Turnbuckles must be suitable for the required forces and installed according to the approved details. They should not be used to compensate for incorrect fabrication dimensions or an unsuitable structural design.
Key Design Considerations for Rod Bracing
Building Geometry and Bracing Location
Building length, width, height, column spacing, and roof configuration influence the placement of bracing. Long industrial buildings may require carefully distributed braced bays to provide a continuous load path.
Wind Loads and Site Conditions
Bracing design must account for the applicable wind loads and other forces identified in the structural design. Site location, terrain, building height, geometry, and exposure conditions can all affect the design requirements.
For projects in India, the engineer should consider applicable Indian standards and the project specifications.
Rod Size and Material Strength
The rod diameter and material properties must be suitable for the design forces. Engineers consider tensile capacity, effective length, threaded-section capacity, and other relevant limit states.
A rod should not be selected solely by nominal diameter or by copying the size used in another building.
Connection Design
Bracing forces pass through connections such as bolts, gusset plates, clevises, and threaded ends. These components must be designed to transfer the required loads into the supporting structure.
Incorrect hole positions, unsuitable fasteners, or inadequate connection capacity can compromise the intended performance of the bracing system.
Coordination With Building Operations
Bracing must be positioned so that it works with the building's intended use. Machinery routes, loading bays, doors, windows, and service installations can affect where bracing can be placed.
Any proposed removal or relocation of a bracing member must be reviewed and approved by the responsible structural engineer.
Benefits of Rod Bracing in Pre-Engineered Buildings
A properly engineered rod bracing system offers several practical benefits.
Improved structural stability: Rods help resist lateral forces and control movement in designated directions.
Efficient load transfer: Bracing provides a defined route for transferring forces through the structural system.
Lightweight construction: Steel rods can provide effective tension bracing with relatively little material when appropriately designed.
Practical installation: Systems using suitable threaded ends or turnbuckles can allow controlled adjustment during erection.
Cost-conscious design: Engineering-based member selection helps balance structural requirements with material use.
Better coordination: A clearly defined bracing layout helps fabricators and erection teams understand member locations and connection requirements.
These benefits depend on correct engineering, fabrication, installation, and inspection. Rod bracing cannot compensate for deficiencies in other parts of the structural system.
Applications of Rod Bracing in PEB Structures
Rod bracing is used in various steel-framed buildings where the structural design requires a suitable lateral stability system.
Manufacturing plants: Helps provide stability around production areas and industrial equipment.
Warehouses: Supports the structural system of buildings with large roof areas and extensive wall framing.
Logistics centres: Helps address stability requirements in long industrial buildings with loading and dispatch facilities.
Industrial sheds: Contributes to stability in fabrication workshops and storage structures.
Commercial industrial buildings: Provides bracing where suitable for the structural geometry and operational layout.
The required arrangement depends on the intended use, building dimensions, loading conditions, and connection design.
Rod Bracing for Industrial Projects in Noida
Industrial projects in Noida may involve factories, warehouses, storage buildings, and logistics facilities with different structural requirements.
Before fabrication begins, project teams should review the bracing layout, rod specifications, connection details, and installation sequence. Bracing locations should be coordinated with access openings, cladding, roof equipment, and other building services.
The structural drawings should clearly show the location and details of the required members. Coordination between the PEB manufacturer, structural engineer, civil contractor, and erection team helps identify conflicts before they affect construction.
Applicable Indian standards and project-specific specifications should guide the final design. Site teams should not remove, relocate, or modify bracing without an approved engineering solution.
Why Choose Sumiraj for PEB Solutions?
Sumiraj recognises that a reliable PEB structure requires coordination between engineering, materials, fabrication, and erection requirements.
Key considerations include:
Engineering expertise: Coordinating bracing arrangements with the building's structural design.
Quality steel: Selecting materials according to approved project specifications.
Customized designs: Planning bracing layouts around building dimensions, openings, and operational needs.
Cost efficiency: Balancing structural performance with appropriate material selection.
Timely delivery: Coordinating drawings, fabrication, and delivery requirements to support project scheduling.
Indian standards: Considering applicable Indian standards and project-specific design requirements.
Technical support: Helping project teams understand bracing details and their integration with the wider PEB system.
For each project, the final bracing arrangement should be established through approved engineering calculations and drawings rather than a generic layout.
Frequently Asked Questions
1. What is rod bracing in a PEB building?
Rod bracing uses diagonal steel rods to help resist lateral forces and maintain structural stability in designated parts of a building.
2. Where is rod bracing installed in pre-engineered buildings?
It is commonly installed in selected roof and wall bays. Its location depends on building geometry, structural calculations, openings, and the required load path.
3. What is the difference between roof rod bracing and wall rod bracing?
Roof rod bracing operates in designated roof bays and helps transfer forces through the roof-plane system. Wall rod bracing operates in selected vertical bays and contributes to the building's longitudinal stability.
4. Why are turnbuckles used in rod bracing?
Turnbuckles allow adjustment of rod length where the design permits. They help achieve the required fit and alignment during installation but do not replace accurate fabrication or structural calculations.
5. Can rod bracing be removed to create a larger opening?
No bracing member should be removed or relocated without engineering review and approval. An alternative load path may be required to maintain structural stability.
6. How is rod diameter determined?
Rod diameter is established through structural calculations that consider design forces, material strength, threaded-section capacity, connection details, and applicable design requirements.
7. Does every PEB require rod bracing?
Every PEB requires an appropriate system for lateral stability, but the type and arrangement vary. The responsible structural engineer determines whether rod bracing or another system is suitable.
Conclusion
Rod bracing in pre-engineered buildings contributes to structural stability by helping resist lateral forces and transfer loads through designated bracing systems. Roof rods, wall rods, X-bracing arrangements, and their connections must be designed to work with the primary frame and foundations.
For industrial projects in Noida, the right bracing arrangement depends on building geometry, wind loads, member capacity, connection design, and operational requirements. Proper engineering, coordinated drawings, and correct installation help support reliable building performance.
Sumiraj can help industrial buyers evaluate their PEB requirements and coordinate structural components according to project-specific engineering needs.
